Universal Lab Bench Measurement Box



  • A RF power meter with over 50dB dynamic range (10MHz-3.5GHz or more depending on sensor)
  • High-precision frequency counter with external prescale-sensors (readings software-converted)
  • Scalar network analyzer functionality for sweeping filters, antennas, amplifiers, etc.
  • Fully automatic VCO evaluation ( frequency and output power vs. tuning voltage)
  • 16Bit digital to analog converters for controlling external analog circuits
    DC volt meter up to 10 volts reading back outputs of external analog circuits
  • Fully controllable via RS232 PC interface

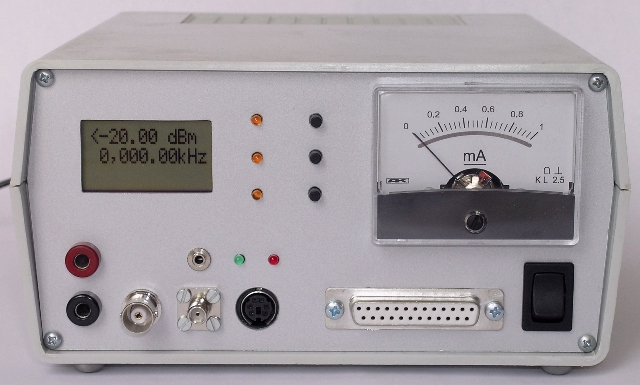

  • LCD display and analog meter for convenient stand-alone usage
  • Also contains a programmer for AVR microprocessors
  • Serves as cross-bar for connection of two more RS232 clients
